GAMAK low and medium voltage motors: single-phase, three-phase, ex-proof, ATEX 22, smoke extraction, crusher and milking motors, IE2–IE4.
GAMAK was founded in 1961 to supply Turkish industry with domestically built electric motors and today manufactures at its plant in Dudullu, Istanbul. Alongside pressing, machining, winding, assembly and aluminium die-casting, the factory has a custom-build department, a motor test laboratory and its own copper wire production.
Low-voltage motor types
GAMAK low-voltage motors are totally enclosed squirrel-cage induction motors for supplies below 1000 V. Single-phase motors are built in frames 71–100 and three-phase motors in frames 63–450. Besides general-purpose single-phase and three-phase motors, the range includes ex-proof and ATEX 22 motors for explosive atmospheres, smoke extraction motors (standard and pad-mounted) for fire safety, crusher motors for heavy loads and milking machine motors for agriculture.
Medium-voltage motors
For high-power processes GAMAK also builds cast iron medium-voltage induction motors for 3–10 kV supplies, rated 150–4000 kW.
GAMAK motors are used everywhere from pumps, fans and conveyors to power plants and refineries. Share your application details with us to request a quotation.
Technical specifications
- Efficiency class
- IE2 / IE3 / IE4
- Low-voltage power range
- 0.12 – 710 kW
- Low-voltage frame sizes
- 63 – 450
- Medium-voltage power range
- 150 – 4000 kW (3 – 10 kV)
- Number of poles
- 2 - 4 - 6 - 8 and two-speed
- Frequency
- 50 / 60 Hz
Custom manufacturing options
- IP56 – IP65 – IP66 protection
- Class H insulation
- Special winding
- NU bearing
- Special shaft
- Thermistors and winding heater
- Brake and encoder
- Forced-ventilation fan
- Two-speed winding
Applications
- Pump and fan systems handling water, air and gas
- Conveyor lines for material handling
- Compressors and ventilation units
- Production lines in textiles, chemicals, automotive, food, construction and energy
- Fire safety in shopping malls, car parks, high-rise buildings and tunnels
- Hazardous-area plants such as refineries, paint shops, gas filling stations and petrochemicals
- Agricultural and livestock machinery
- Heavy-duty applications such as stone crushing and mining
Products

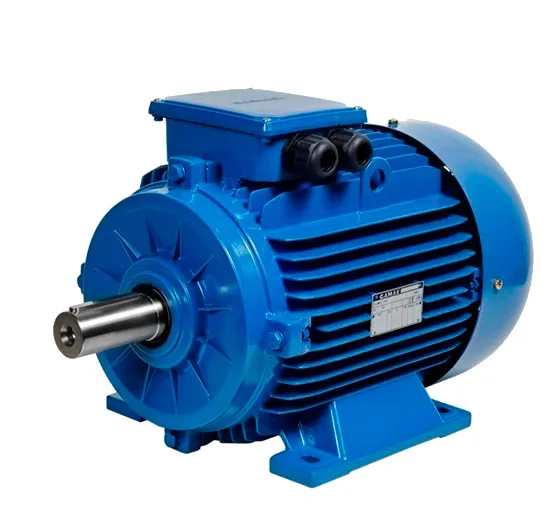

Three-Phase Asynchronous Motors
GAMAK three-phase induction motors: IE2–IE4 efficiency, 0.12–710 kW, frames 63–450, 2-4-6-8 poles and two-speed versions.
View
Single-Phase Asynchronous Motors
GAMAK single-phase induction motors: M22D and MK22D series, 0.12–3 kW, aluminium frames 71–100, 220/230 V, IE2 and IP55.
View

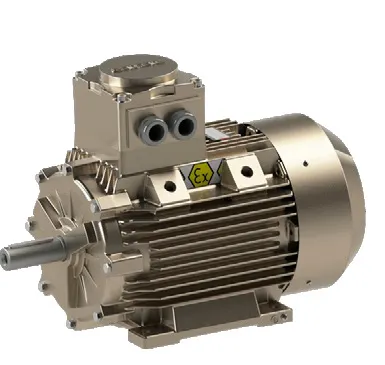

Ex-Proof Motors
GAMAK ex-proof motors: flameproof (Ex d) cast iron design, II 2G Ex db IIC T4 Gb, 0.18–55 kW, frames 71–250, IP65.
View

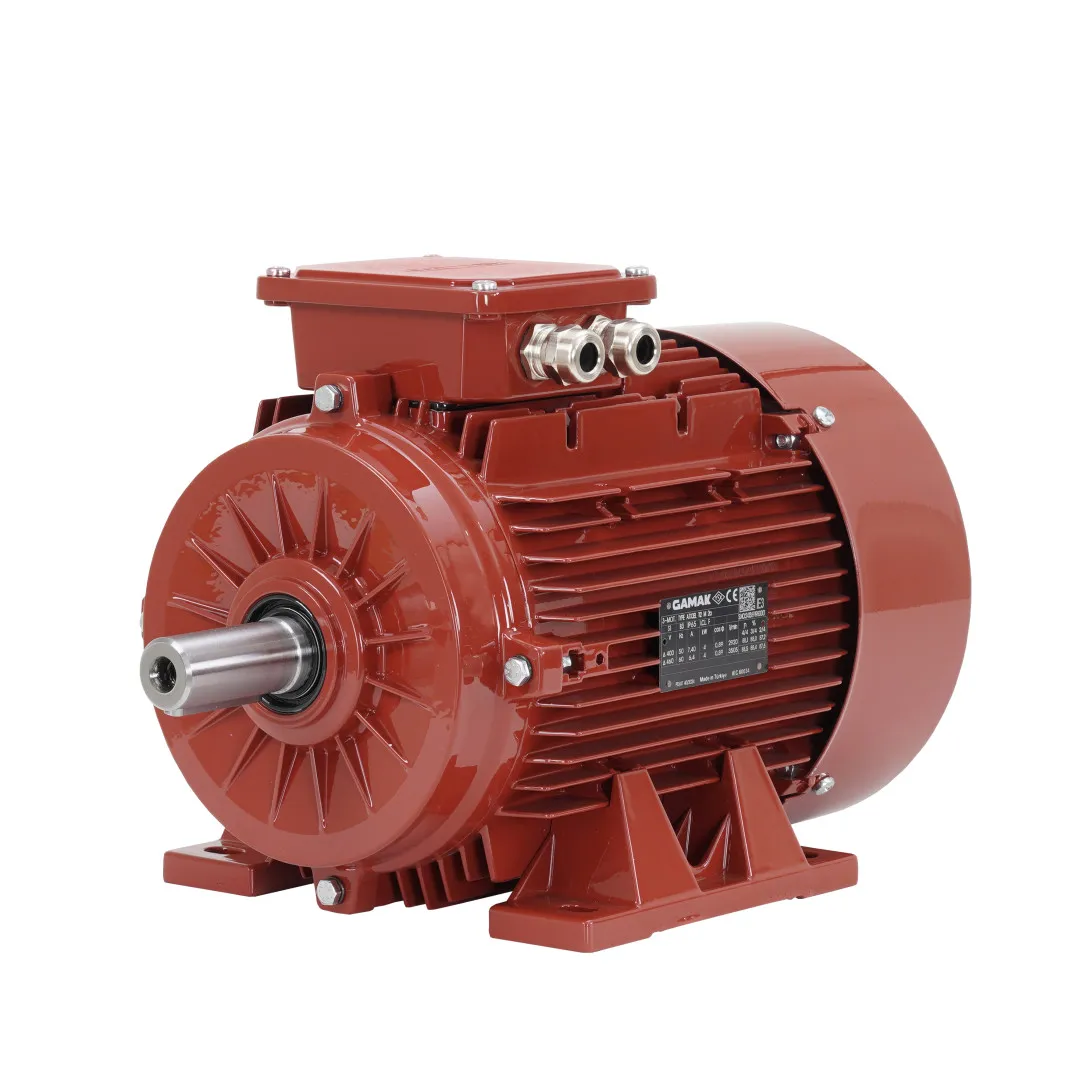

ATEX 22 Motors
GAMAK ATEX 22 motors for Zone 22 combustible dust areas: 0.55–500 kW, frames 71–355, IE2 / IE3, T135 °C surface temperature.
View

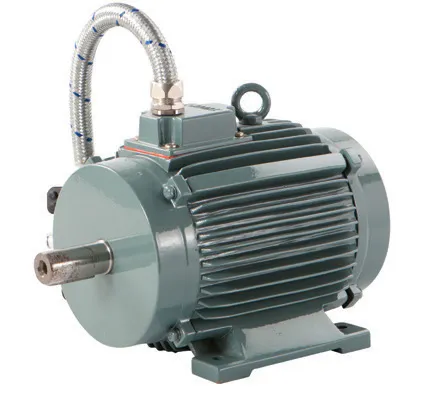

Smoke Extraction Motors
GAMAK smoke extraction motors: F300 / F400 classes for 2 hours at 300 or 400 °C, 0.75–55 kW, standard and pad-mounted versions.
View

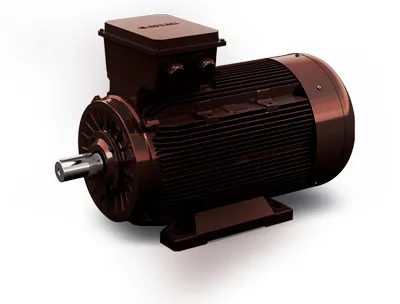

Crusher Motors
GAMAK crusher motors: heavy-duty cast iron motors in frames 315 and 355, up to 355 kW, IE3 / IE4, IP65 and class H insulation.
View

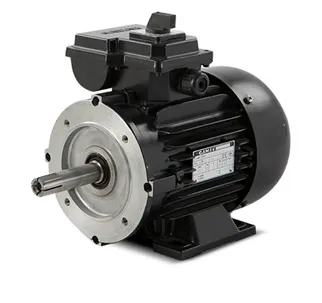

Milking Machine Motors
GAMAK milking machine motors: single-phase 0.55 kW, aluminium frame 90, 4 poles, IE2 and IP55, for milking vacuum pumps.
View

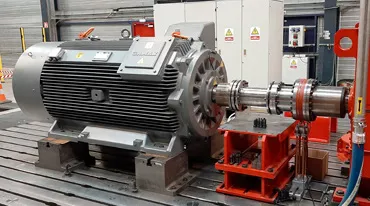

Medium Voltage Motors
GAMAK medium-voltage induction motors: 150–4000 kW, 3–10 kV, cast iron housing, IP55 / IP56, TEFC / TEFV / TEAAC cooling options.
ViewLet’s choose the right product for your project
Tell us what you need and our technical team will get back to you with the best product and price.
