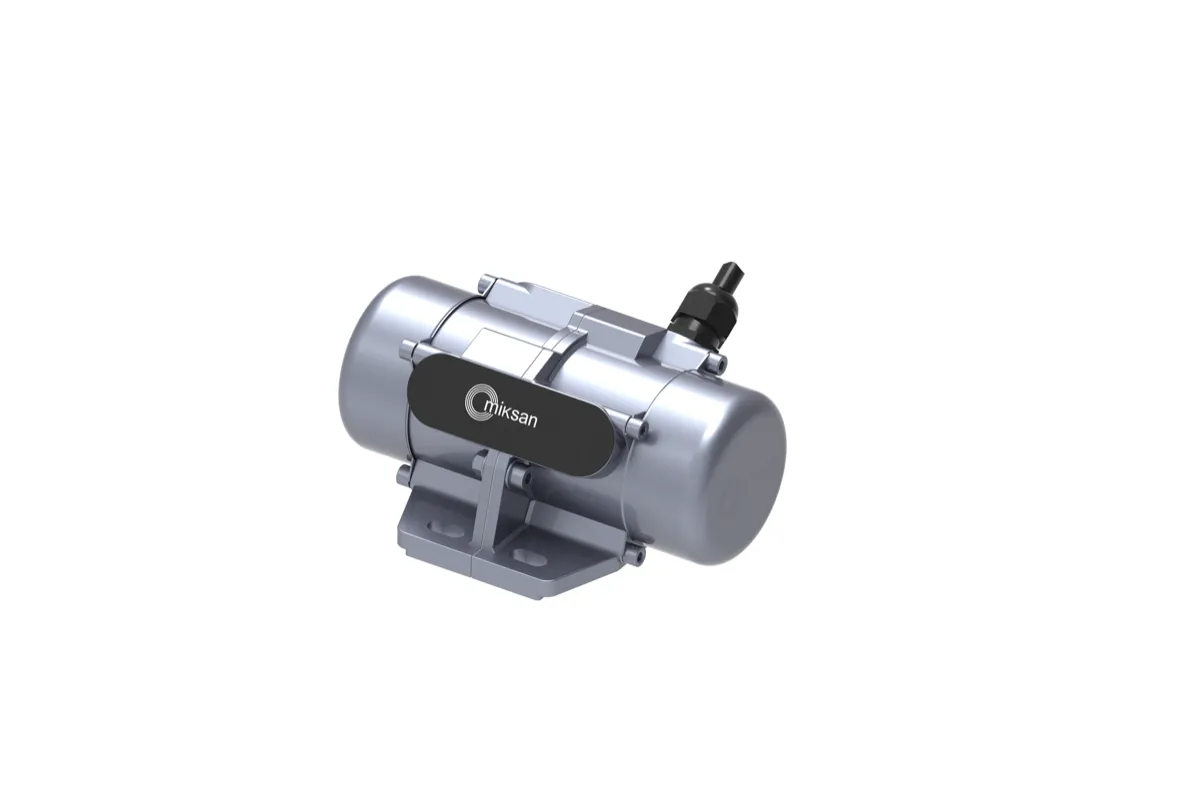

Micro, Flanged, Single-Phase and DC Vibration Motors
Miksan micro, flanged, single-phase and 24 V DC vibration motors: compact solutions for small feeders, hoppers and mobile equipment.
Request a quote for price and lead time — we will get back to you shortly.
- Brand
- Miksan
- Product group
- Electric Motors
Alongside its standard three-phase series, Miksan offers four vibration motor groups for special mounting and supply needs. Micro vibration motors (VX, VY, VZ) with 20 – 58 W input power are designed for small equipment and are ATEX-certified for Zone 22 dust areas. Flanged vibration motors bolt to the equipment by a flange; 2-pole types deliver 59 kg to 1,770 kg of centrifugal force.
Single-phase vibration motors are 230 V capacitor-run designs giving 80 – 500 kg of centrifugal force in 2-pole types. DC/AC converter vibration motors run on a 24 V DC supply, provide 50 – 200 kg of centrifugal force and suit vehicle-mounted or mobile applications without mains power.
Applications
- Small feeders and dosing units
- Hopper and bin discharge
- Laboratory and packaging equipment
- Mobile equipment without mains power (DC)
Technical specifications
- Micro vibration (VX, VY, VZ)
- 20 – 58 W, 400 V three-phase or 230 V single-phase
- Micro vibration Ex marking
- II 3D Ex tc IIIC T100 °C Dc, IP65
- Flanged vibration (2-pole)
- 59 – 1,770 kg centrifugal force
- Single-phase vibration (2-pole)
- 80 – 500 kg centrifugal force, 230 V, capacitor-run
- DC/AC converter vibration
- 24 V DC supply, 50 – 200 kg centrifugal force
- Speed (50 Hz)
- 3000 and 1500 rpm
