Gearboxes
Francia

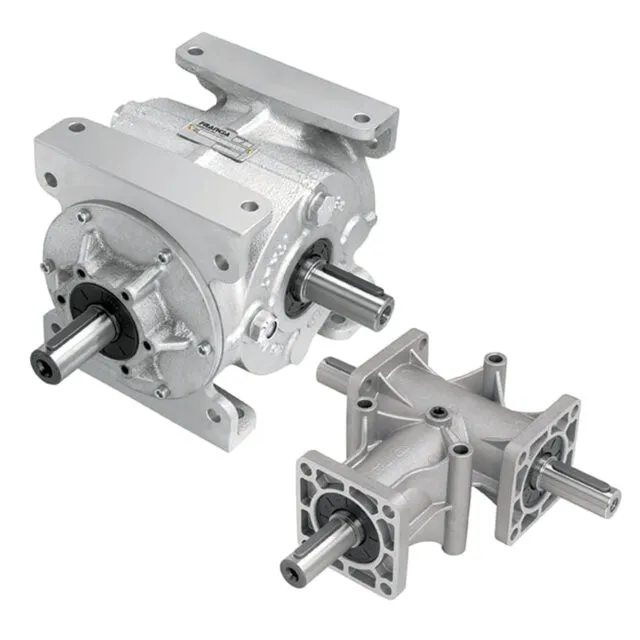

Francia (Italy) right-angle bevel gearboxes: AG series with Gleason spiral bevel gears in aluminium and cast iron housings.
Francia S.r.l. is a precision engineering company based in Correggio, Italy. In power transmission it is best known for its right-angle bevel gearboxes, used to turn a shaft axis through 90° or to drive several points synchronously from a single power source.
All sizes of the AG series use Gleason spiral bevel gear sets. The smaller sizes (AG16 – AG50) have aluminium housings and the larger sizes (AG80 – AG120) have cast iron housings. Versions with 2, 3 or 4 shafts and motor-mounted options are available.
Technical specifications
- Founded
- 1976
- Origin
- Italy (Correggio)
- Max. input power
- 45 kW (at 1400 rpm)
- Shaft arrangements
- 2, 3 and 4 shafts
Products
AG16 – AG50 Aluminium Right-Angle Bevel Gearboxes
Francia AG16 – AG50 right-angle bevel gearboxes in aluminium: Gleason spiral bevel gears, 1:1 and 2:1 ratios, grease-lubricated for life.
View

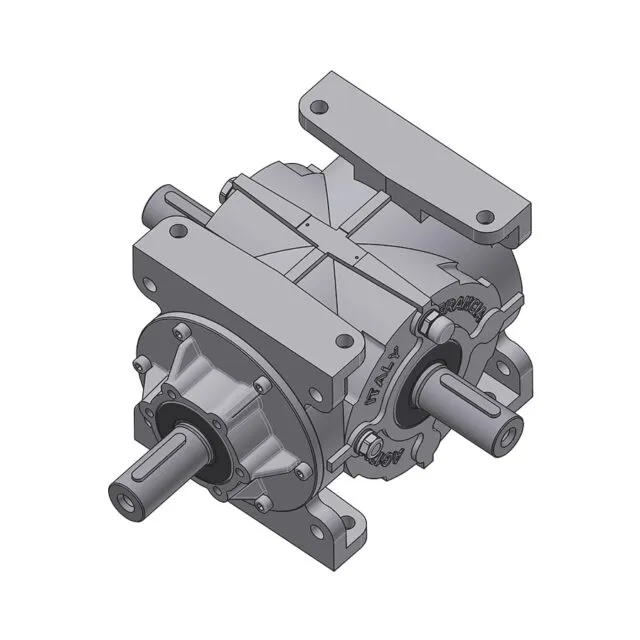

AG80 – AG120 Cast Iron Right-Angle Bevel Gearboxes
Francia AG80 – AG120 right-angle bevel gearboxes in cast iron: Gleason spiral bevel gears, ratios 1:1 – 4:1, IEC motor flange option.
ViewLet’s choose the right product for your project
Tell us what you need and our technical team will get back to you with the best product and price.
