Electric Motors
Volt
Volt (WEG Group) electric motors: VTP three-phase, VSP single-phase, VPM permanent magnet and VSR synchronous reluctance series plus special motors.
Volt Motor was founded in 1966 to make winding products, started building single-phase motors in 1987 and later added three-phase motors. After operating within Saya Holding from 2011 to 2024, the company joined WEG, one of the world's largest electric motor manufacturers, in December 2024. Volt motors are now offered under the "Volt – WEG Group" name.
The range covers frame sizes 56 to 355 and outputs up to 450 kW. Operating as a registered R&D centre since 2021, Volt supplies IE3 premium efficiency motors and has developed IE4 and IE5 super premium efficiency motors through its own research.
Current series are VTP (three-phase), VSP (single-phase), VPM (permanent magnet) and VSR (synchronous reluctance) motors. Special versions are also available for applications such as smoke extraction, milking machines, compressors, fans, industrial ovens and automatic doors.
Technical specifications
- Frame sizes
- 56 – 355
- Power range
- 0.12 – 450 kW
- Efficiency class
- IE2 – IE5 (depending on series)
- Number of poles
- 2 - 4 - 6 - 8
- Frequency
- 50 / 60 Hz
- Protection class
- IP55 (standard)
Custom manufacturing options
- IP56 – IP65 – IP66 protection
- Class H insulation
- Special winding, voltage and frequency
- NU bearing
- Special shaft
- Thermistors and winding heater
- Brake and encoder
- Forced-ventilation fan
- Two-speed motors
Applications
- Industrial plants
- Pump and fan systems
- Compressors
- Industrial ovens
- Automatic door systems
- Milking machines
- Smoke extraction systems
Products

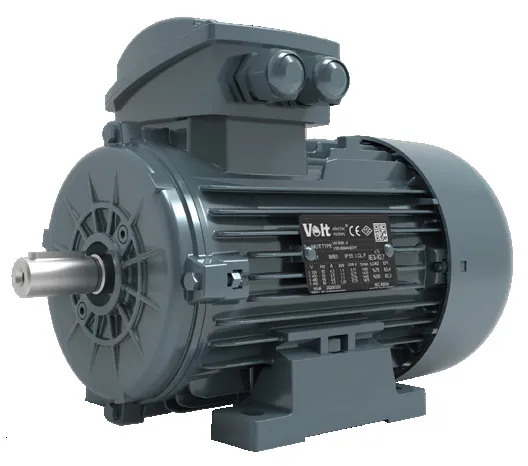

VTP Series Three-Phase Asynchronous Motors
Volt VTP series three-phase induction motors: aluminium frames 63–200, 2-4-6 poles, 400 V 50 Hz; B3 foot, B5 and B14 flange versions.
View

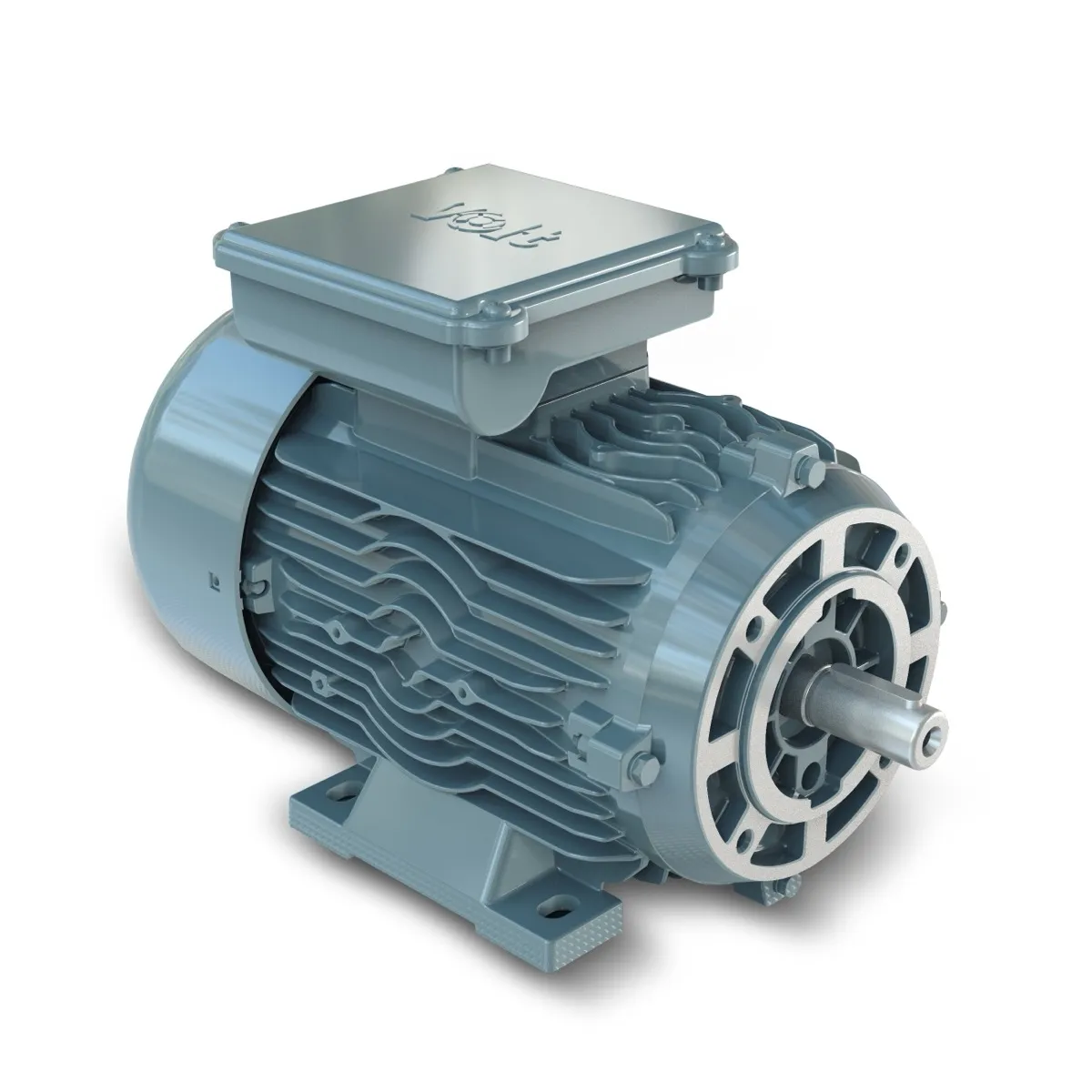

VSP Series Single-Phase Asynchronous Motors
Volt VSP series single-phase induction motors: aluminium frames 63–100, 2-4-6 poles, 220 V 50 Hz; quiet, compact and easy to commission.
View

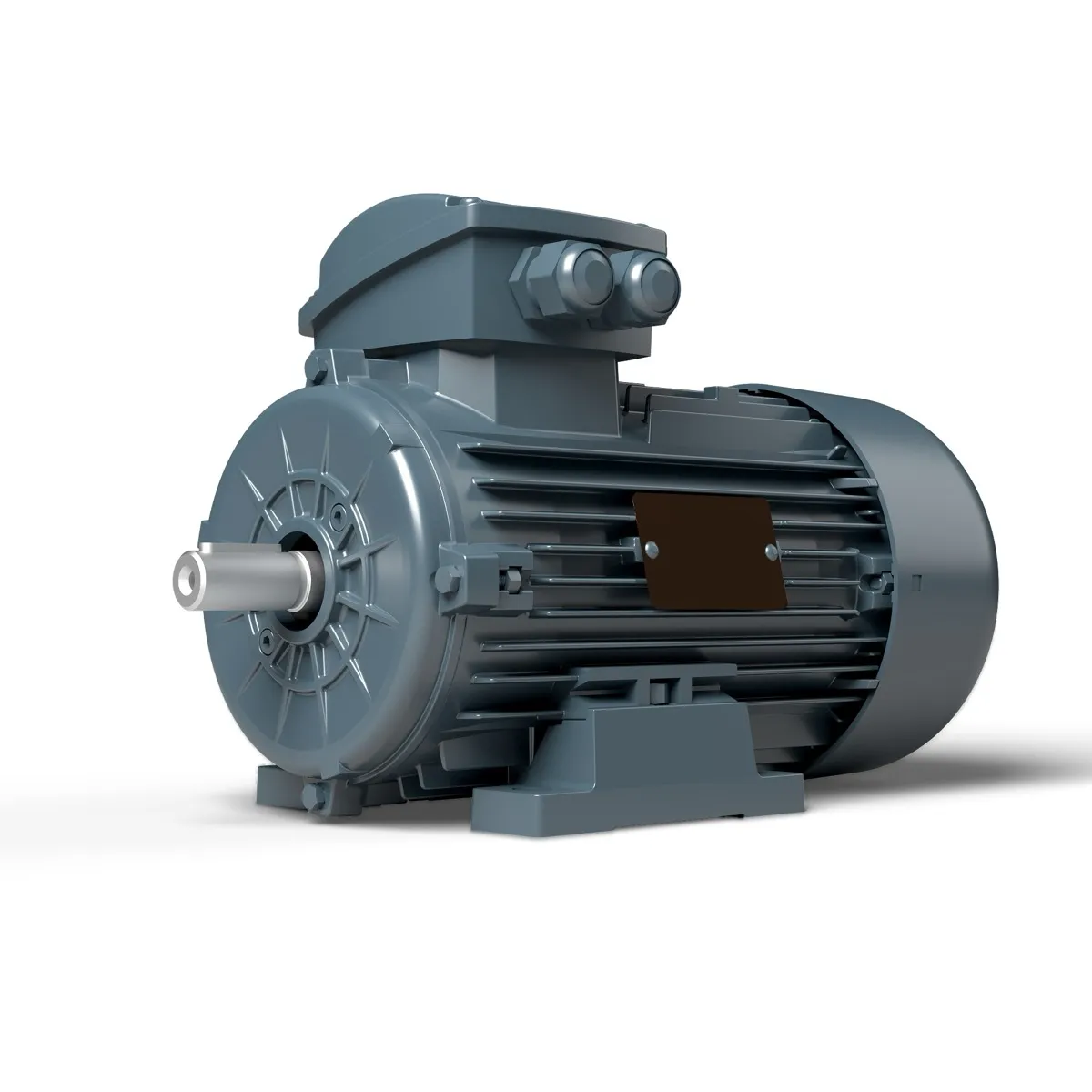

VPM Series Permanent Magnet Motors
Volt VPM series permanent magnet motors: IE4+ efficiency, ferrite-magnet rotor, aluminium frames 80–100, 2 and 4 poles.
View

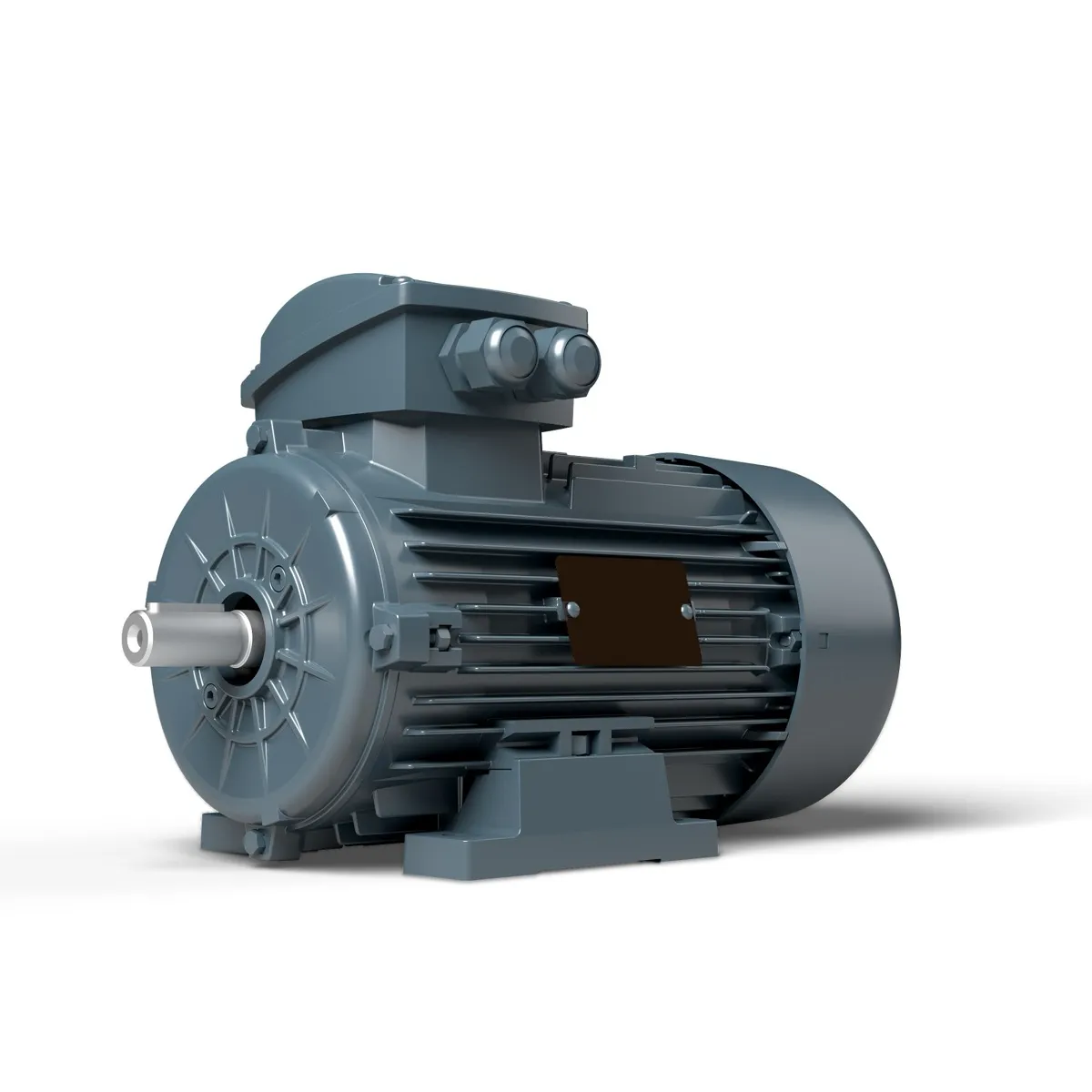

VSR Series Synchronous Reluctance Motors
Volt VSR series synchronous reluctance motors: high efficiency without magnets, aluminium frames 71–160, 2 and 4 poles, 400 V 50 Hz.
View

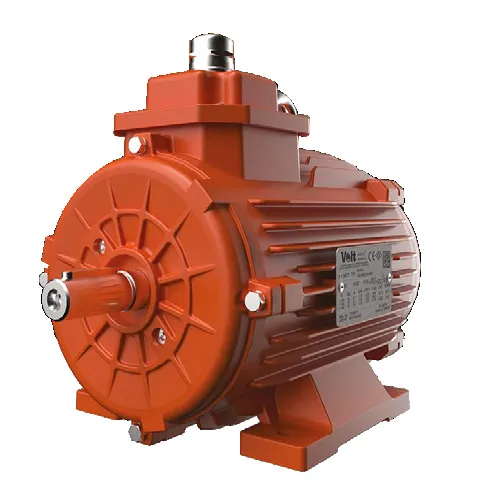

Smoke Extraction Motors
Volt smoke extraction motors: special motors that keep smoke exhaust fans running under high-temperature conditions during a fire.
View

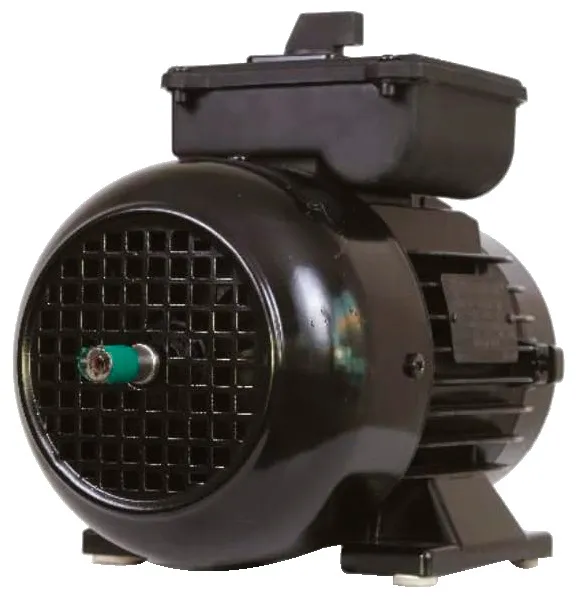

Milking Machine Motors
Volt milking machine motors: special-application motors designed to drive the vacuum pumps of milking machines.
View

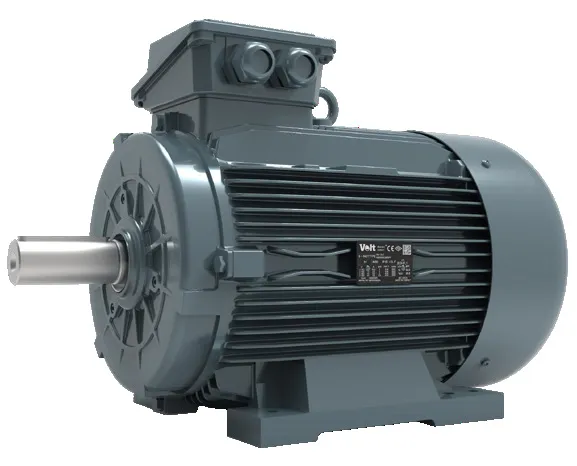

Stone Crusher Motors
Volt stone crusher motors: industry-specific three-phase induction motor options for the heavy shock loads of crushing and screening plants.
