VTP Series Three-Phase Asynchronous Motors
Volt VTP series three-phase induction motors: aluminium frames 63–200, 2-4-6 poles, 400 V 50 Hz; B3 foot, B5 and B14 flange versions.
Request a quote for price and lead time — we will get back to you shortly.
- Brand
- Volt
- Product group
- Electric Motors
The Volt VTP series comprises three-phase induction motors for a wide range of uses, from industrial plants to pump and fan systems. They are built in aluminium frames 63–200 with 2, 4 or 6 poles for 400 V 50 Hz, and motors with special shafts or other ratings, speeds, voltages and frequencies are available on request.
The finned, high-surface-area frame dissipates heat efficiently, lowering winding and bearing temperatures. Sturdy feet and machined bearing seats reduce misalignment, vibration and noise. The rotor combines a low-loss lamination stack with a die-cast aluminium cage and is dynamically balanced with a half key.

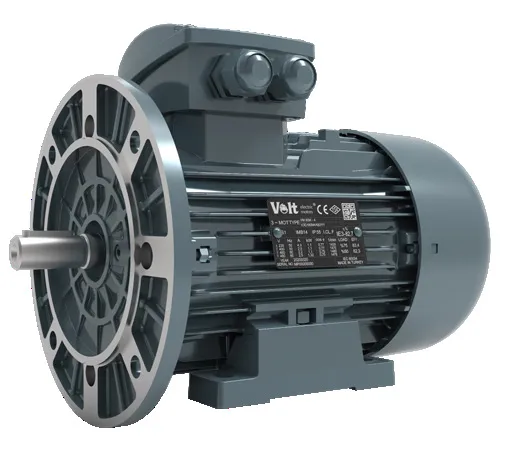

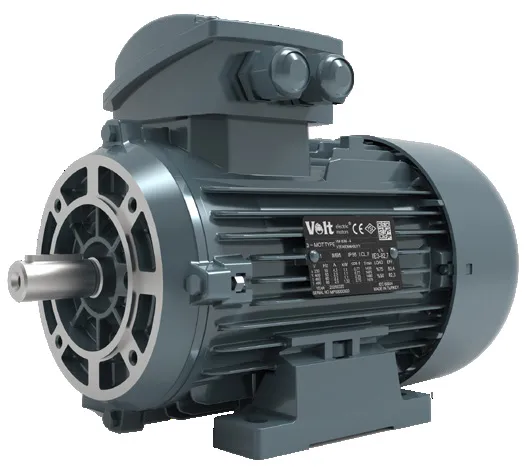

The motors can be started direct-on-line, via star-delta or a soft starter, or run on a VFD. The terminal box offers generous space and 360° cable routing for quick installation. B3 foot-mounted, B5 flange and B14 face-flange versions are available.
Applications
- Industrial plants
- Pump and fan systems
- Compressors
- General-purpose machine drives
Custom manufacturing options
- Special shaft
- Alternative power and speed ratings
- Special voltages and frequencies
- Scalar or vector control via VFD
- Star-delta or soft-starter starting
Technical specifications
- Series
- VTP
- Frame sizes
- 63 – 200 (aluminium)
- Number of poles
- 2 - 4 - 6
- Standard supply
- 400 V, 50 Hz
- Mounting
- B3 foot, B5 flange, B14 face flange
- Rotor
- Die-cast aluminium squirrel cage
- Paint
- RAL 7031
